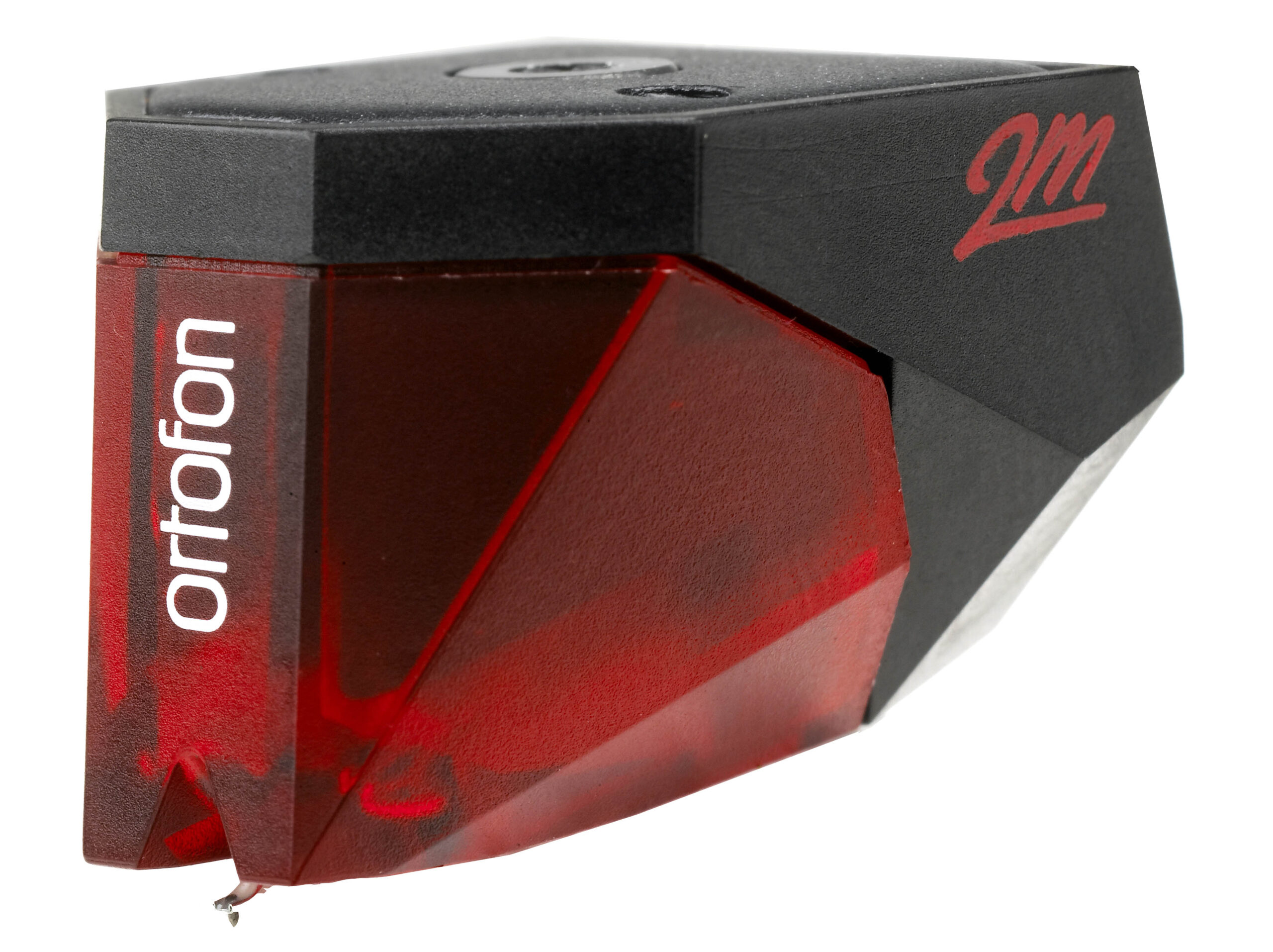

Ortofon 2M Red Cartridge

£95.00

Key Features:

  • Improved engine, which provides an output of 5.5mV
  • Optimised sound reproduction and high level of sonic accuracy
  • Tipped Elliptical diamond
  • Split pole pins with a copper wire
  • All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
  • Stylus brush included
  • Also available with integrated headshell or verso version

Technical Data

Output Voltage (at 1kHz, 5cm/sec): 5.5mV
Channel Balance at 1kHz: 1.5dB
Channel Separation at 1kHz: 22dB
Channel Separation at 15kHz: 15dB
Frequency Range (at -3dB): 20Hz – 22kHz
Frequency Response 20Hz – 20kHz: +3 / -1dB
Tracking Ability at 315Hz: Typically 70μm
Compliance, Dynamic, Lateral: 20μm / mN
Stylus Type: Elliptical
Stylus Tip Radius r / R: 8 / 18μm
Tracking Force Range: 1.6 – 2.0g (16 – 20mN)
Recommended Tracking Force: 1.8g (18mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 1.3kΩ
Internal Inductance: 700mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 – 300pF
Cartridge Colour Body / Stylus: Black / Red
Cartridge Weight: 7.2g
Replacement Stylus Unit: Stylus 2M Red
Accessories: 1 x Stylus Brush
1 x Screwdriver
2 x Screw M2.5 x 5
2 x Screw M2.5 x 7
