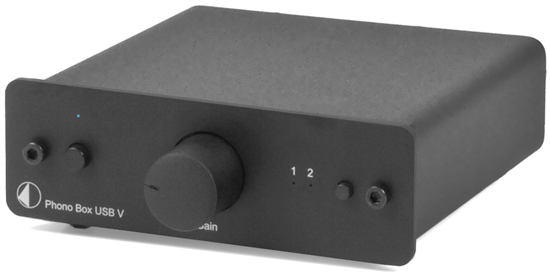

Project USBV Phono Pre-Amp (Black)


Phono Box USB V is an ideal phono pre-amplifier for both your hifi system and vinyl or line-level recording to PC or Mac. MM and MC cartridges will be welcome. Input volume can be set to avoid override. The analogue output of Phono Box USB V can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.


  • Technical Data
  • Input Impedance
  • MM – 47kO / 120pFMC – 100O / 120pFGain
  • MM – 40dBMC – 60dBOutput Voltage Typically
  • 300mV / 1kHz @ 3mV / 1kHz (MM Input)300mV / 1kHz @ 0.3mV / 1kHz (MC Input)Gain (Line Input):11dBMax. Output:||9.5V (1kHz)Noise Floor:
  • MM – 86dB (94dB – A Weighted)MC – 68dB (75dB – A Weighted)THD
  • MM – 0.01%MC – 0.05%RIAA Equalisation CurveAccuracy:20Hz – 20kHz / max. 0.5dBA/D Converter:
  • Burr Brown PCM290416-Bit Delta SigmaSampling Rates:32, 44.1 and 48kHzUSB Output:||Digital Serial Data Protocol USB 1.1Operating Systems:
  • Windows XP, Vista, 7Mac OSInputs

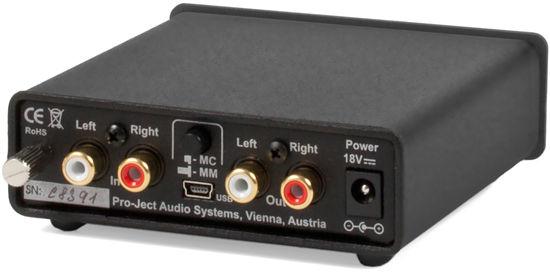

  • Phono – 1 Pair RCA Phono SocketsLine – 3-Pole 3.5mm Coaxial JackOutput:1 Pair RCA Phono SocketsTHD:||0.005%Noise Floor:||96dBDynamic Range:||93dBOutboard Power Supply:||18V/500mA DCPower Consumption:||100mA DCDimensions (WxHxD):
  • 103 x 36 x 104mm103 x 36 x 115mm (Including Sockets)Weight:580g (Without Power Supply)
