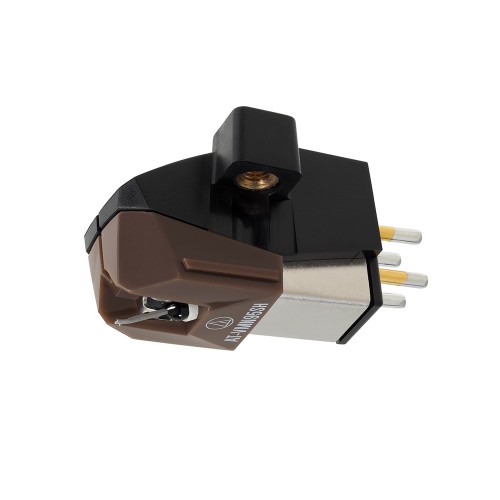

Audio Technica AT-VM95SH Cartridge

£179.00

VM95 series Shibata stereo cartridge

The AT-VM95SH, features a Nude Shibata stylus, one of the most acclaimed stylus format by high end audiophiles. The Shibata stylus produces mid and bass sounds strong and rich in addition to offer a frequency response up to 25,000 Hz.

  • Aluminium cantilever
  • 3.5mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • 20 to 25,000Hz frequency response
Model AT-VM95SH
Type VM Stereo Dual Magnet
Mounting 1/2” centres
Frequency Response 20 – 25,000 Hz
Channel Separation 23 dB (1 kHz)
Output Channel Balance 1.5 dB (1 kHz)
Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.8 – 2.2g (standard 2.0 g)
Stylus Shape Shibata
Stylus Size 2.7 x 0.26mil
Stylus Construction Nude Square Shank
Cantilever Aluminium Pipe
Coil Impedance 3.3 kΩ (1 kHz)
Coil Inductance 550 mH (1 kHz)
DC Resistance 485 Ω
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil T.P. Copper
Recommended Load Impedance 47,000 Ω
Recommended Load Capacitance 100-200 pF
Cartridge Weight 6.1g
Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus AT-VMN95SH
Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver
